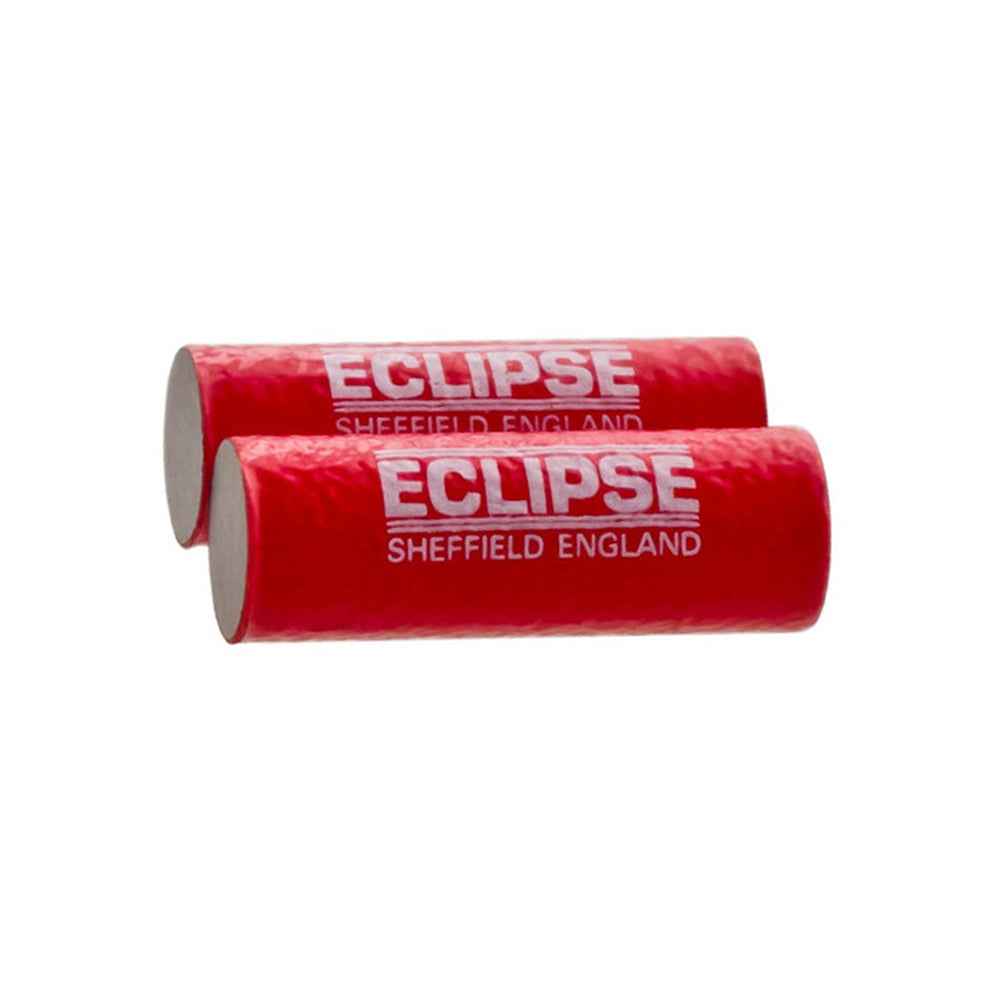

Home » Eclipse Magnetics Alnico Cylindrical Bar Magnets – 1200 GAUSS – Ø4 mm, Ø5 mm, Ø6 mm x 10 mm (Pack of 2) High-Temperature Magnet Set
Eclipse Magnetics Alnico Cylindrical Bar Magnets – 1200 GAUSS – Ø4 mm, Ø5 mm, Ø6 mm x 10 mm (Pack of 2) High-Temperature Magnet Set , Alnico Bar , Eclipse Magnetics Ltd
Eclipse Magnetics Alnico Cylindrical Bar Magnets – 1200 GAUSS – Ø4 mm, Ø5 mm, Ø6 mm x 10 mm (Pack of 2) High-Temperature Magnet Set , Alnico Bar , Eclipse Magnetics Ltd
Eclipse Magnetics Ltd

Eclipse Magnetics Alnico Cylindrical Bar Magnets – 1200 GAUSS – Ø4 mm, Ø5 mm, Ø6 mm x 10 mm (Pack of 2) High-Temperature Magnet Set

SKU: E808-RB
£1.80
In stock
Next Working Day Delivery – Order by 11am (Mon–Fri)

VAT and Shipping calculated at checkout.

Size

Request Bulk Quotes, Bespoke Projects & Expert Assistance.

Email 0114 225 0600

The Alnico Cylindrical Bar range – Models E808, E809 & E810 – deliver compact yet stable magnetic performance using Alnico 5 material, ideal for sensing, switching and educational applications. These straight cylindrical bars are supplied in pairs, operate reliably at elevated temperatures (up to +550 °C) and provide a typical surface field strength around 1200 Gauss (0.12 T).

Key Features

  • Alnico 5 magnetic alloy – retains magnetic output at high temperatures up to approximately +550 °C.
  • Cylindrical bar geometry with magnetisation along the long axis, supplied in pairs for convenience.
  • Compact diameters of 4 mm, 5 mm and 6 mm with a fixed length of 10 mm, making them suitable for space-constrained applications.
  • Typical residual surface field of ~1200 Gauss (~0.12 T) at pole faces — sufficient for triggering reed switches and Hall-effect sensors, but not designed for heavy clamping.
  • Natural (uncoated) finish for E808–E810 models, offering good corrosion resistance and simplified integration.

Typical Applications

  • Sensor actuation such as reed switches, Hall-effect sensors or proximity detectors.
  • Educational or laboratory demonstrations of magnetism and field behaviour.
  • Low-force magnetic locating, holding or positioning of ferrous components in assemblies where temperature stability is required.

Technical Data

Model No. Diameter (mm) Length (mm) Weight / pair (g) Typical Field (Gauss) Units / Pack
E808 4 10 ≈2 g 1200 G Pair
E809 5 10 ≈3 g 1200 G Pair
E810 6 10 ≈4 g 1200 G Pair
