Alnico magnets are some of the oldest and most enduring types of permanent magnets still used today. Made from a blend of aluminium (Al), nickel (Ni), and cobalt (Co), with small amounts of iron and copper, these magnets revolutionised the industry when they were first developed in the 1930s. Known for their exceptional temperature stability and strong magnetic output, Alnico magnets remain a trusted choice across many industries, from engineering and manufacturing to education and research.
The Origins of Alnico Magnets
Before rare earth magnets such as neodymium and samarium cobalt were introduced, Alnico was the go-to material for producing permanent magnets. The development of Alnico alloys in the early 20th century represented a major leap forward in magnetic technology. By combining specific proportions of aluminium, nickel, and cobalt, engineers were able to create a material that could generate a strong, stable magnetic field while maintaining performance at elevated temperatures. This breakthrough allowed Alnico magnets to replace weaker steel magnets in countless applications.
What Makes Alnico Magnets Unique?
The unique properties of Alnico come from its metallurgical structure. It’s a cast or sintered alloy that naturally forms a distinct crystal structure, allowing it to maintain magnetism even under challenging thermal conditions. Alnico magnets can operate at temperatures up to +550 °C, far exceeding the limits of most other permanent magnets. They also have excellent corrosion resistance and a relatively low rate of magnetic loss over time.
However, Alnico’s coercivity (its resistance to demagnetisation) is lower than that of modern rare earth magnets. This means that while Alnico offers outstanding stability and high-temperature performance, it’s not ideal for environments with strong opposing magnetic fields unless carefully designed into magnetic circuits.
Common Shapes and Manufacturing Methods
Alnico magnets are produced either by casting or sintering. Cast Alnico allows for complex shapes and typically has the highest magnetic strength, whereas sintered Alnico is made from powdered alloy compressed and heated into solid form, offering tighter dimensional tolerances and slightly lower magnetic strength. Both types can be machined and finished to custom specifications.
Typical shapes include bars, rods, rings, horseshoes, and discs — each suited to specific design needs. Bar magnets, for example, are widely used in educational kits, while ring magnets are common in electric motors and sensors.
Applications of Alnico Magnets
Even with newer magnetic materials available, Alnico still holds an important place in modern engineering. Its combination of stability, strength, and durability makes it ideal for environments where temperature extremes or consistent magnetic performance are critical.
- Sensors and Switches: Alnico’s stable magnetic output ensures reliable performance in position and proximity sensors.
- Motors and Generators: High temperature tolerance makes it suitable for rotating machinery and instrumentation.
- Audio Equipment: Alnico has been used for decades in loudspeakers and microphones for its warm, consistent magnetic response.

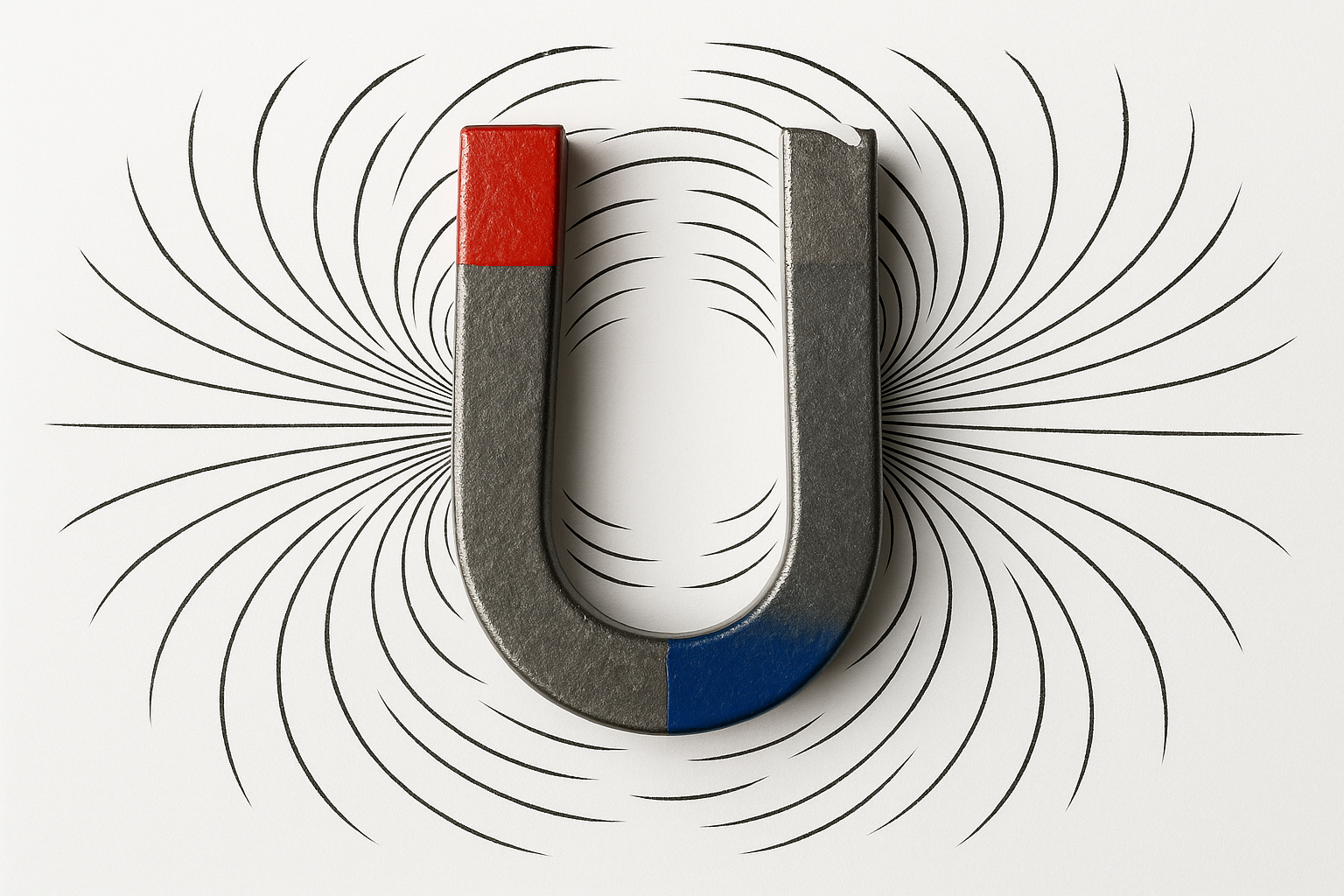

- Educational Tools: Bar and horseshoe magnets are standard in physics classrooms for magnetic field demonstrations.
- Industrial Holding and Lifting: Alnico’s durability and corrosion resistance make it effective in industrial magnetic assemblies.
Alnico vs Other Magnet Materials
When compared with modern magnets, Alnico occupies a unique middle ground. Neodymium (NdFeB) magnets are far stronger but lose magnetism rapidly at high temperatures. Ferrite (ceramic) magnets are more cost-effective but weaker. Alnico, on the other hand, provides a balanced option — strong, stable, and temperature-resistant — making it perfect for specialised applications where reliability matters more than sheer strength.
Conclusion
Alnico magnets have stood the test of time, remaining a vital material in the magnetics industry despite the rise of newer technologies. Their combination of strength, temperature stability, and longevity make them indispensable in areas such as instrumentation, education, and high-performance engineering. Whether you’re designing precision sensors or building classic scientific demonstrations, Alnico magnets continue to deliver dependable performance where consistency is key.
